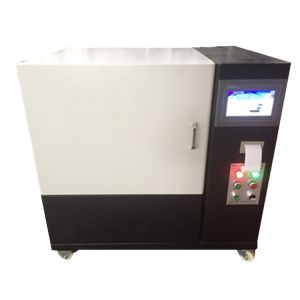

Construction Insulation Materials Intelligent Guarded Hot Plate
Thermal Conductivity Tester
Introduction:
It is mainly used to test the thermal conductivity of insulation
materials. Testing materials include fiber board, loosing filler
glass fiber, ceramic fiber, foam plastic (XPS/EPS/PUR, etc.),
inter-layer composite plate, vacuum plate, rubber products,
cement(concrete) products. Measuring with this machine, it tends to
be stable rapidly and can generate rapid response to sample
characteristics. This depends on the precise control of the plate
temperature and the configuration of the instrument's dual heat
flow sensor. For some materials, it takes only a few minutes to get
the correct thermal resistance. Depending on the measurement
requirements, the user can choose either to terminate the
measurement at this time or to further extend the measurement time.
For QC and process control, the sample test time is shorter than 5
minutes. Measurements are strictly in accordance with ASTMC518 or
ISO8301 and GB/T10295 standards.
Standards :
ASTMC518 , ISO8301 , GB/T10295
Features :
1. It has fuzzy guarded plate that is hot plate temperature
tracking and precision control technology.
2. Self-calibration function of the thermal conductivity and
heating power
3. Compensation for test piece’s thickness and the average
temperature
4. WINDOWS automatic thermal analysis measuring software system,
data analysis and reporting output function.
Specifications:
| thermal conductivity range | 0.005 ~ 3 W/m.K |
| Cooling system | External water bath/compressed air |
| Hot plate temperature | Room temperature~99.99℃ |
| Cold plate temperature | 5~50℃ |
| Temperature accuracy/resolution | 0.1℃/0.01℃ |
| Specimen quantity &sizes(Max) | 1 piece, 300×300×50 mm |
| Measure thickness automatically | High-precision displacement sensor is used and connected with
computer to measure thickness automatically; resolution 0.01mm. |
| Thermal resistance range | 0.1 ~ 8.0 m2K/W |
| Repeatability | 1% |
| Accuracy | 3% |
| Environmental condition | room temperature: 18~25℃, humidity: 20~80%RH |
| Data result analysis | Automatic thermal analysis software, Windows 8/7/XP, English |
| Supply voltage | AC 220V±5%, power: 3.0kw |
| Product list: | Test host, Accurate thermostatic bath, Testing software,
Communication line |
Photo reference:
Our Services
During the whole business process, we offer Consultative Selling
service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested
suitable products to customer to confirm. Then quote most suitable
price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized
requirements. Offer reference photoes to show the proucts
appearance. Then, confirm the final solution and confirm final
price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO
requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
5)Installation and after sale service:
Defines installing those products in the field and providing
after-sales support
Package:
