    DC Electromagnetic Drop Test Machine / Free Fall Drop Tester

    Ask Lasest Price
    Brand Name : Liyi
    Certification : ISO
    Price : $580.00 - $1,980.00/ Set
    Payment Terms : T/T
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 1 sets needs 15 days,>1 sets to be negotiated
    • Product Details
    • Company Profile

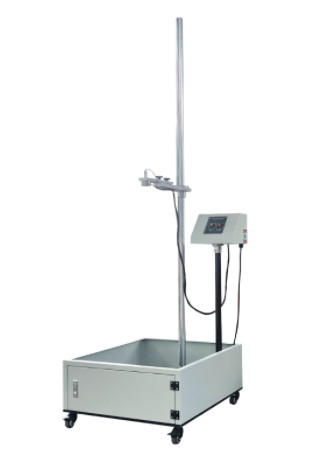

    DC Electromagnetic Drop Test Machine / Free Fall Drop Tester

    Drop Test Machine / Free Fall Drop Tester
    Product Description

    This tester is used for testing the fastness of plastic, ceramics, glass fiber,etc. Uses certain weight steel ball and adjust to certain height to let it fall freely and impact test sample. Then check the sample damage degree to judge the sample quality.
    Electromagnetism sucker and the ball will be absorbed automatically. Press the dropping key, the steel ball will be released instantly and fall to impact the sample surface. The drop height can be adjusted and there are altitude scale to measure dropping height.

    Specification

    Max drop height2m (or custom made)
    Drop ball control modeDC electromagnetic
    Steel ball weight112, 198, 225, 357, 533, 1042, 2280g (or customized )
    Drop height precision1mm
    Dropping rod shapeSquare bar
    Control and elevation waysCircuit control electromagnet suction cups, manual lifting electromagnet fixed link
    The sample size≤280×100×40mm(L*W*H)
    Farmar weight allowed error±5g
    Control cabinetSurrounded by a protective box at the bottom
    DimensionAbout 500*500*2100mm
    Power supply220V 50Hz

    Product Effects
