Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃
Quick detail :
Inner Size (W*H*D) | 50*60*50CM |
External Size (W×H×D) | 100*148*106CM |
Humidity Control Range | Humi.range: RH20%-98% (can be customized) |
Temperature control range | A: -40℃～150℃,B: -60℃～150℃ ,C: -70℃～150℃ |
Temp&Humi Fluctuation | ±0.5℃；±2.5%RH |
Controller Resolution | ±0.3℃；±2.5%RH |
Temp&Hum Departure | ±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH) |
Power | 380/ 220V AC±10% 50/60Hz |
Application:
ouch Screen Temperature Humidity Environmental Test Chamber can
simulate different environment condition. It is appropriate for
testing material performance, such as resist heat, resist dry,
resist humidity and resist cold. That can define performance of
material.
Related Standards:
IEC600628 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714,
CNS3625/12565/12566
Characteristics:
1. Use the high precision microcomputer touch temperature and
humidity controller with high stability of platinum resistance to
temperature and wind speed in the circulatory system of temperature
and humidity test.
2. Control temperature humidity well-distributed, precisely and
steady.
3. Completely independent system separate for testing in high
temperature, low temperature and constant temperature and humidity
environment
Specifications:
Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | LY-21000 |
Inner Size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×1000 |
External Size W×H×D(cm) | 93×155×95 | 100×148×106 | 117×166×118 | 122×176×121 | 158×186×148 | 158×195×168 |
Volume(L) | 80 L | 150L | 225L | 408L | 800L | 1000L |
Temp&Humi Control Range | Temp. Range: A: -40℃～150℃ Humi.range: RH20%-98% B: -60℃～150℃ C: -70℃～150℃ (Other temperature and humidity range can be customized) |
Temp&Humi Fluctuation | ±0.5℃；±2.5%RH |
Temp&Hum Departure | ±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH) |
Controller Resolution | ±0.3℃；±2.5%RH |
Controller Brand | Korean TEMI880 |
Material | Inwall | SUS 304# steel plate |
Housing | SUS 304# steel plate surface fog processed |
Heat Insulator | resistance to high temperature, high chlorine acid b vinegar foam
insulation materials |
Aie Circulation Way | centrifugal fan-broadband type force air circulation |
Refrigeration Way | cascade type multiple refrigeration |
Refrigerater | fully enclosed piston compressor Taikang France |
Refrigerants | R4O4A or American dupont environmental protection cold
media(R23+R404) |
Condensing Way | Air-cooling |
Heater | nickel chrome heating wire heater |
Humidifier | semi-closed steam |
Water Supply Way | automatic cycle water supply |
Standard Accessaries | *50mm test hole on the
left............................................................1PCS
*PL inner
lamp................................................................................1PCS
*Adjustable
clapboard.....................................................................2PCS
*Humidity
cloth...............................................................................1Bag
*Fuses..............................................................................................3PCS
*Power
line.......................................................................................1PCS
*Software
CD....................................................................................1PCS
*Operation
manual.............................................................................1PCS |
Safety Devices | *Leakage current
*Overload
*Compressor overload
*Over temperature
*Ultra-wet/dry
*Humidification temperature protection. |
Power | 380/ 220V AC±10% 50/60Hz |

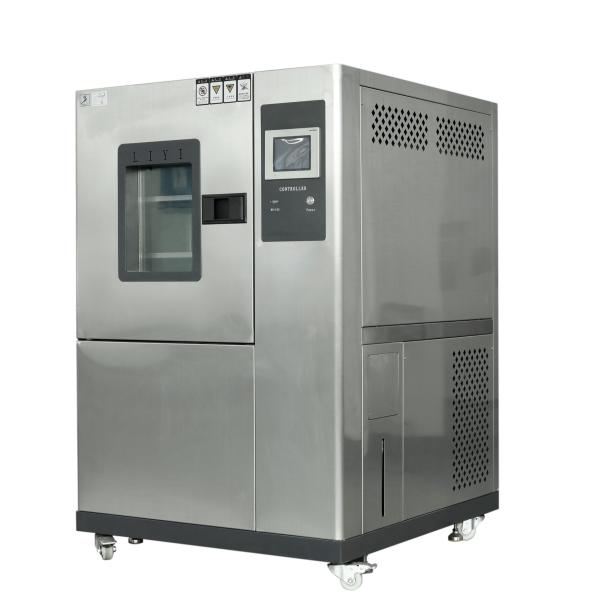

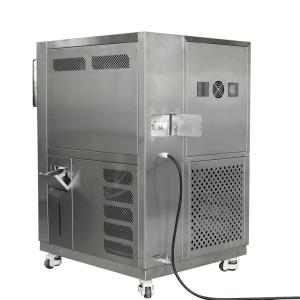

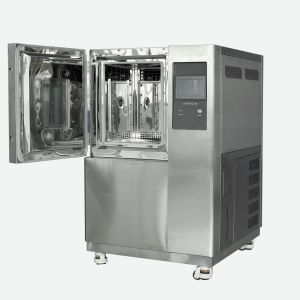

Picture show :
Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who
specializes in developing, manufacturing, marketing all kinds of
environmental equipment. Our company has advanced technology,
experienced technical management personnel and efficient
professional service staffs, fine quality management and perfect
after-sales service system.
Our company mainly produce simulated environmental tester, plastic
and rubber tester etc. on all kinds of materials testing
industries. The production base is located in the country’s
manufacturing center Dongguan, Guangdong province, China. In order
to service our customers better in terms of reducing costs and
early delivery, in 2005 we had set up an office in Kunshan, Jiangsu
province for Eastern China marketing and servicing.
Liyi deals with customers from more than 150 countries and regions.
Meanwhile, we are committed to cooperate with different dealers in
different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to
ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We
combine with the international testing standards and the specific
demands of customers that may establish a new banner in Chinese
testing industry.
During the whole business process, we offer Consultative Selling
service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested
suitable products to customer to confirm. Then quote most suitable
price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized
requirements. Offer reference photoes to show the proucts
appearance. Then, confirm the final solution and confirm final
price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO
requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
4)Installation and after sale service:
Defines installing those products in the field and providing
after-sales support.
